LaseX1

500W Industrial Fibre Laser Source
for Precision Processing

A 500W fibre laser source built for reliable power delivery across metal cutting, welding, additive manufacturing and OEM integration. Designed for industrial applications, LaseX1 combines stable laser output, flexible power control and multiple fibre options in a compact package that can be integrated into new or existing systems.

Order Now — £3,999← All Products

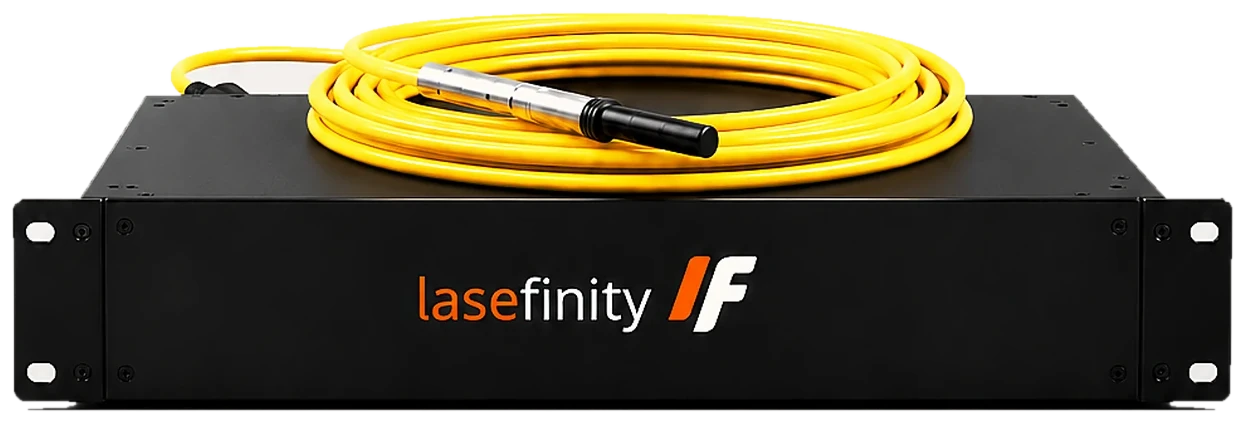

LaseX1 Fiber Laser Source
500W
Output Power
1080±10nm
Wavelength
10–100%
Power Adjustment
5kHz
Max Modulation
Starting at
£4,999
£3,999
Early Bird Offer

Why Choose LaseX1?

Precision Laser At Industrial Scale

The right laser source needs to deliver more than power. It needs to remain stable, integrate easily with your equipment and perform consistently throughout demanding production cycles.

LaseX1 is a 500W industrial fibre laser source designed for applications where controlled and repeatable laser energy is essential. With 10–100% power adjustment, continuous-wave or modulated operation, and multiple fibre core options, it can be configured for different material-processing requirements.

From fibre laser cutting and welding to SLS/SLM systems and OEM equipment, LaseX1 provides a flexible laser source for industrial integration.

Beam Quality
High
Near-diffraction-limited performance for maximum focus intensity
Power Range
10% – 100%
Adjustable in real-time via analog or RS232 control interface
Operation Mode
CW + Modulated
Switchable between continuous wave and pulsed modulation up to 5 kHz
Output Connector
QBH/QCS
12m output cable with QBH standard connector — industry universal
Engineering Detail

Built For
Industrial Demands

Stable Laser Output
LaseX1 maintains power stability of less than ±1.5% over two hours at 25°C, supporting consistent laser performance during long operating cycles.
Flexible Power Control
Adjust laser output from 10% to 100% to suit different processing requirements, with continuous-wave and modulated operation available.
High-Quality Beam Delivery
Choose from 14, 20, 25 or 50 µm fibre core diameters to match different beam-delivery and application requirements.
Built for Integration
RS232 and analogue control interfaces make LaseX1 suitable for integration with CNC equipment, automation systems and OEM platforms.
Compact Industrial Design
At approximately 14.5 kg and 80 × 402 × 296 mm, LaseX1 provides 500W laser capability in a compact package.
Designed for Long Operating Cycles
A low-maintenance design and thermal-management system support reliable operation in demanding industrial environments.

Where Can LaseX1 Be Used?

Where LaseX1 Delivers Results

LaseX1 is designed as a flexible laser source rather than a machine for one specific application. Its 500W output and configurable control make it suitable for several industrial processes.

Fibre Laser Cutting
Use a controlled laser beam for precision cutting of metal components and sheet materials. LaseX1 can be integrated with suitable cutting equipment and motion systems.
Fibre Laser Welding
The stable laser output can be used for precision welding applications where controlled energy delivery and repeatable results are important.
Metal 3D Printing & Additive Manufacturing
LaseX1 can serve as a laser source for SLS and SLM systems, delivering controlled laser energy for metal powder-bed processes. For a complete industrial L-PBF system, explore the FusionX metal 3D printer, or see WireX, a desktop wire-fed DED metal 3D printer for a compact platform designed for research, teaching and prototyping.
Marking and Surface Processing
The laser source can also be integrated into systems for applications such as marking, engraving and other laser-based surface-processing operations.
Technical Data

Full Technical
Specifications

Output Power500 W
Wavelength1080 ± 10 nm
Fiber Core Diameter14, 20, 25 or 50 µm
Output Cable Length12 m (QBH connector)
Operation ModeCW or Modulation
Power Stability< ±1.5% (2h, 25°C)
Power Adjustment Range10% – 100%
Max Modulation Frequency5 kHz
Power Supply220V AC, 50/60 Hz
Power Consumption1.5 kW
Control InterfaceRS232 / AD (Analog)
Dimensions (H×W×D)80 × 402 × 296 mm
Weight~14.5 kg

Designed for Easy
OEM Integration

Drop-In Laser For Your System

If you are building or upgrading a laser-based system, the laser source needs to work with the rest of your equipment.

LaseX1 is designed with integration in mind. Its QBH output connector, 12-metre output cable and RS232/analogue control interfaces provide flexibility when connecting the laser to external equipment.

It can be integrated into applications involving:

CNC systemsPLC-controlled equipmentAutomation platformsLaser cutting systemsLaser welding systemsAdditive manufacturing equipment

For OEM applications, customised configurations and integration requirements can be discussed with the Lasefinity engineering team.

LaseX1 Integration

Is LaseX1 Right for
Your Application?

Choosing a fibre laser source depends on more than laser power. Your application, beam-delivery requirements, control system, cooling setup and integration environment all need to work together.

LaseX1 may be suitable if you need:

A 500W fibre laser source for industrial material processing
Flexible power control from 10–100%
CW or modulated operation up to 5 kHz
OEM integration through RS232 and analogue control
Multiple fibre options for different beam-delivery requirements
A compact laser source for space-constrained systems

If you're unsure which configuration is right for your equipment, Lasefinity's engineering team can help you assess the requirements.

LaseX1 Fibre Laser Source Price

System Pricing
LASE-X1 500W — Early Bird Offer
Starting at
£4,999
£3,999
Early Bird — Limited Units

The LaseX1 is currently available at an early-bird price of £3,999. For customised configurations, OEM integration or application-specific requirements, contact the Lasefinity team to discuss your project.

  • System commissioning & testing support
  • OEM integration documentation
  • 12-month component warranty
  • RS232/Analog setup & configuration
  • Technical support & applications advice
Enquire to Order

Frequently Asked Questions

Got Questions? We've Got Answers

What is the LaseX1 fibre laser source?

LaseX1 is a 500W industrial fibre laser source designed for metal cutting, welding, additive manufacturing and OEM integration.

How much does a 500W fibre laser source cost?

The LaseX1 starts at £3,999 under the current early-bird offer. Contact Lasefinity for pricing and configuration options.

What can a 500W fibre laser source be used for?

A 500W fibre laser can be used for applications including metal cutting, precision welding, SLS/SLM systems, engraving, marking and other material-processing applications.

Can the LaseX1 be used for metal cutting?

Yes. LaseX1 can be integrated into fibre laser cutting systems for processing materials such as stainless steel, mild steel and titanium, depending on the system configuration.

Can the LaseX1 integrate with CNC and PLC systems?

Yes. LaseX1 supports RS232 and analogue control, allowing integration with CNC controllers, PLCs and custom automation systems.

Is the LaseX1 suitable for SLS and SLM?

Yes. The 500W fibre laser source can be integrated into SLS and SLM systems to provide controlled and consistent laser power for metal powder-bed processing.

What fibre core sizes are available with the LaseX1?

LaseX1 is available with 14, 20, 25 or 50 µm fibre core diameters, giving system integrators flexibility for different applications and beam-delivery requirements.
